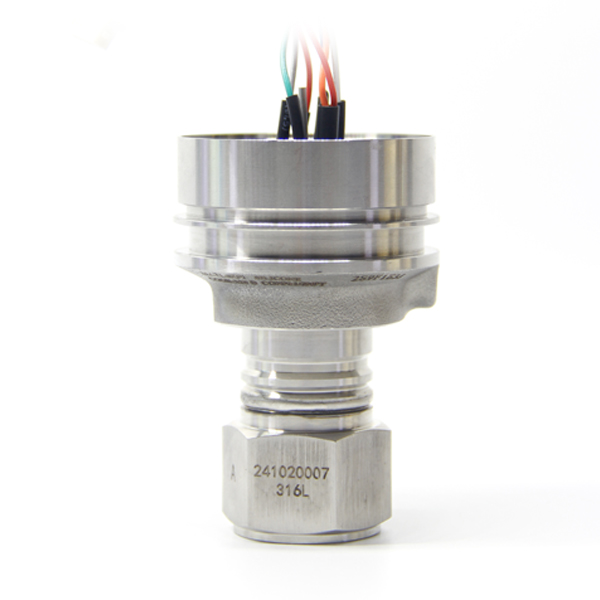

The PZ20A Monocrystalline Silicon Pressure Sensor Module encapsulates a monocrystalline silicon chip in a 316L stainless steel substrate. The applied pressure is transmitted to the monocrystalline silicon chip through the stainless steel diaphragm and internally sealed silicone oil. The monocrystalline silicon chip does not directly contact the measured medium, forming an isolated structure suitable for a variety of liquid media.

Product Advantages

• Built-in temperature sensor

• Optional isolation diaphragm material to meet anti-corrosion requirements

• All stainless steel material with fully hermetic welding

• Constant pressure excitation mode

Product Features

• Power Supply: 2.5VDC - 12VDC

• Storage Temperature: -40°C to 105°C

• Operating Temperature: -40°C to 85°C

• Temperature Hysteresis: <±0.75% F.S. (160kPa ≤ sensor full scale ≤ 60MPa)

• Diaphragm Material: 316L / Hastelloy C

• Terminal Box Connection:M27×2 external thread

M56×1.5 external thread

M45×1.5 external thread

M30×1.5 external thread
