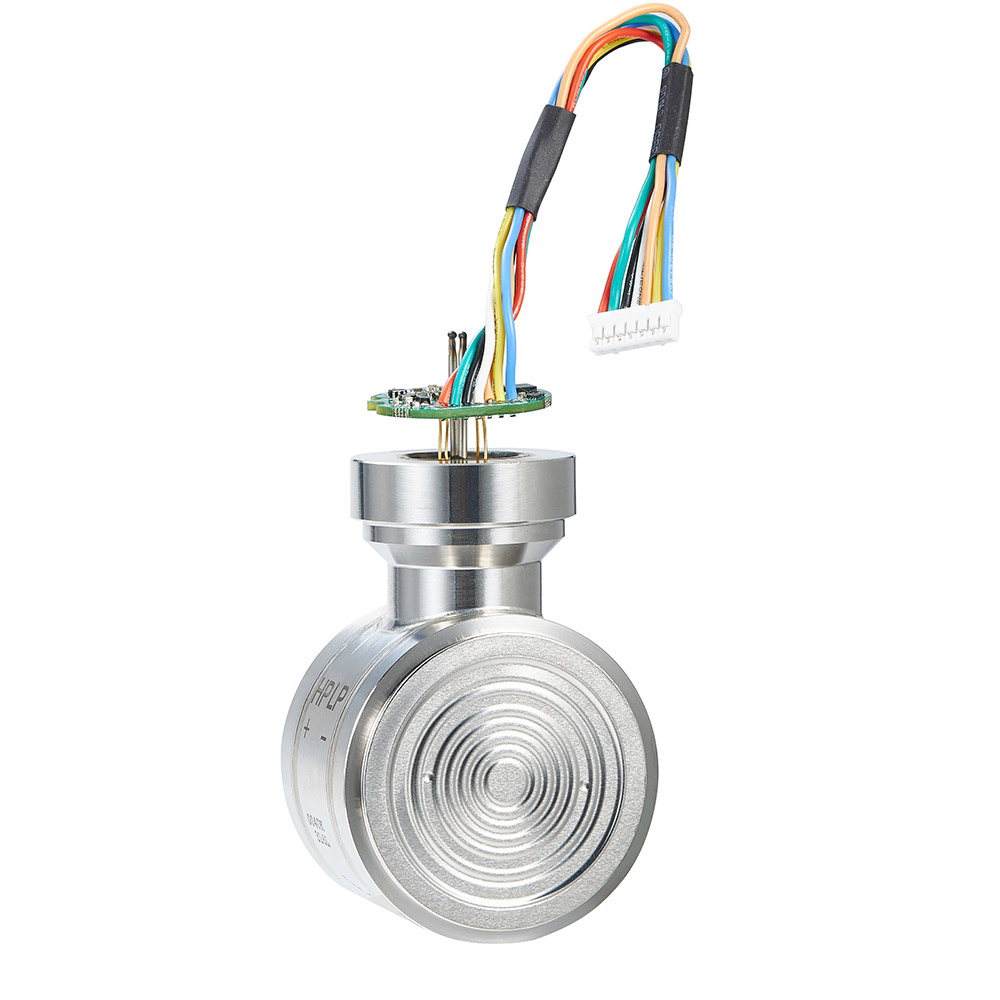

The PZ38D Multi-Parameter Sensing Module adopts a pressure sensor based on monocrystalline silicon piezoresistive technology and is integrated with a built-in temperature sensor. It can measure three parameters of the process: differential pressure, static pressure (gauge pressure or absolute pressure), and temperature.

Product Advantages

• Built-in temperature sensor

• Optional isolation diaphragm material to meet anti-corrosion requirements

Product Features

• Power Supply: 5VDC - 12VDC

• Operating Temperature: -40°C ~ +85°C

• Storage Temperature: -50°C ~ +125°C

• Full Scale Output Voltage: ≥70mV @ 5VDC power supply

• Diaphragm Material: 316L / Hastelloy C

• Terminal Box Connection: M27×2 external thread

• M56×1.5 external thread

• 23/16-16UNS external thread

• Process Connection: H-type structure, double flange, process connection internal thread 1/4-18NPT, equipped with drain and vent valves at the rear of the flange, 316 stainless steel

Applications

• Differential pressure measurement

• Flow measurement
