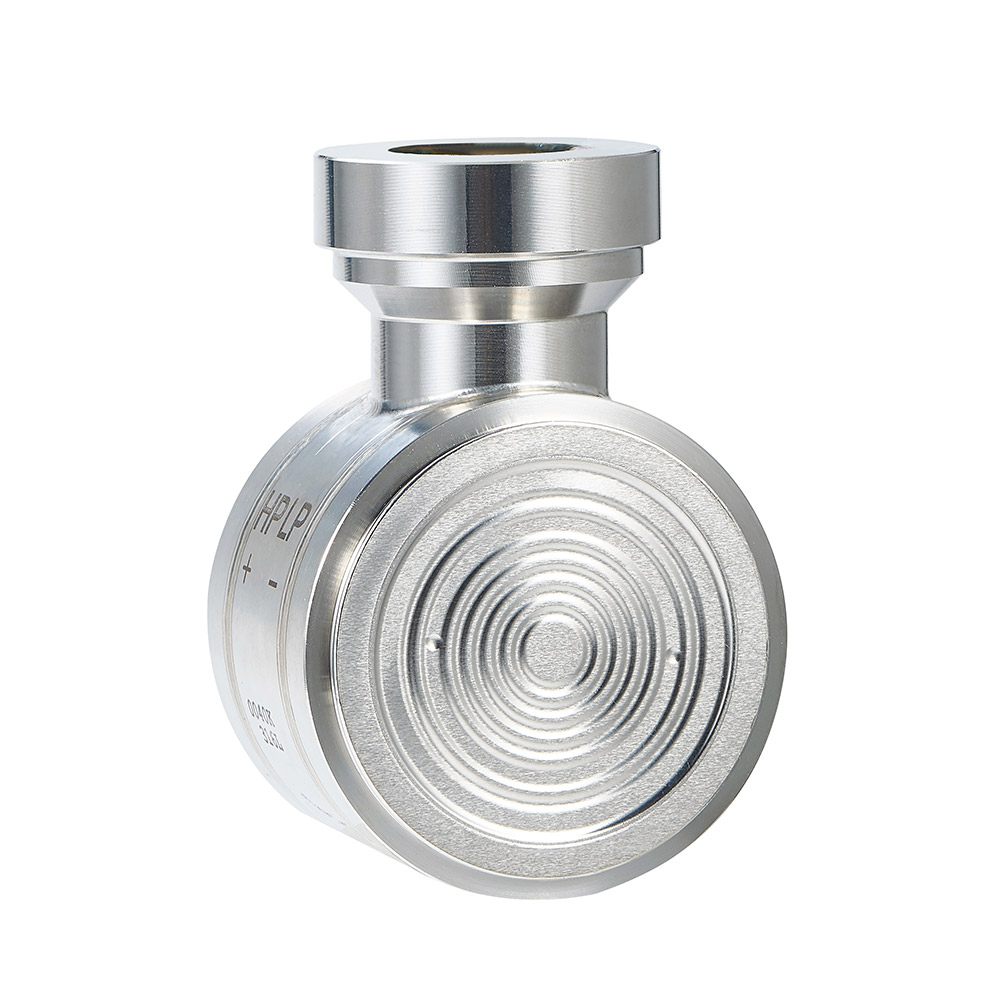

The PZ38 Monocrystalline Silicon Differential Pressure Sensing Module adopts a sensor based on monocrystalline silicon piezoresistive technology and forms an isolated structure, suitable for a variety of liquid media. Its advantages include a built-in temperature sensor, optional isolation diaphragm materials, and a four-diaphragm design.

Product Advantages

• Built-in temperature sensor

• Optional isolation diaphragm material to meet anti-corrosion requirements

Product Features

• Power Supply: 5VDC - 12VDC

• Storage Temperature: -50°C ~ +125°C

• Operating Temperature: -40°C ~ +85°C

• Full Scale Output Voltage: ≥70mV @ 5VDC power supply

• Diaphragm Material: 316L / Hastelloy C

• Terminal Box Connection: M27×2 external thread

• M56×1.5 external thread / M55×1.5 fine thread

• 23/16-16UNS external thread

• Process Connection: H-type structure, double flange, process connection internal thread 1/4-18NPT, equipped with drain and vent valves at the rear of the flange, 316 stainless steel

Applications

• Differential pressure measurement

• Flow measurement
