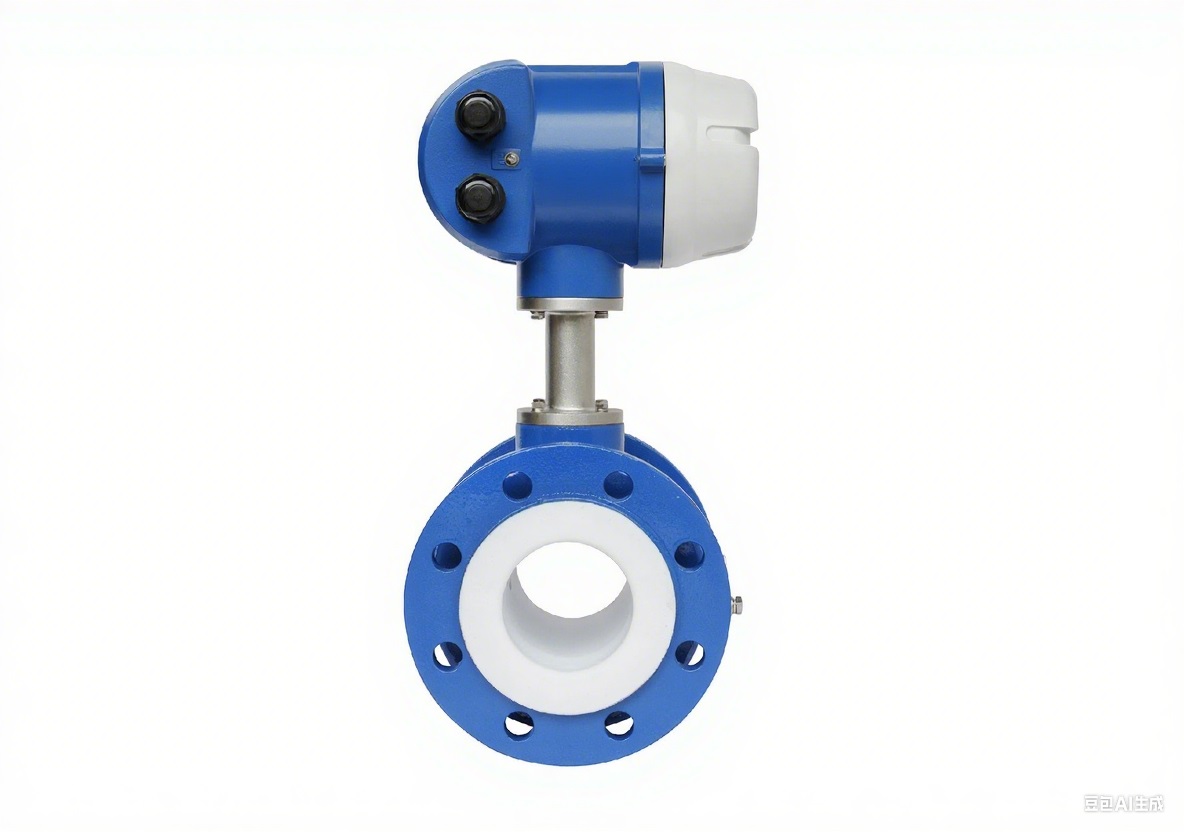

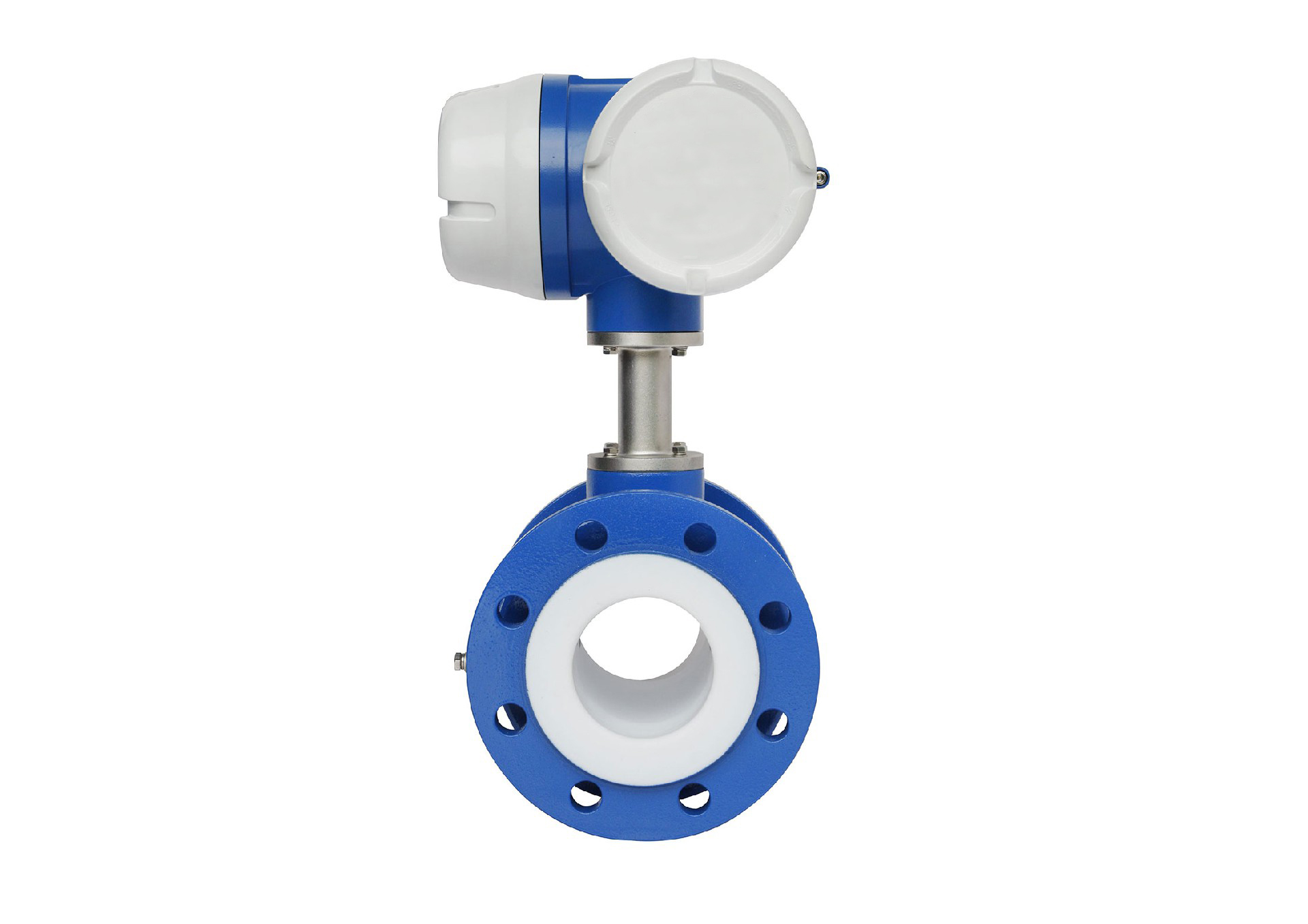

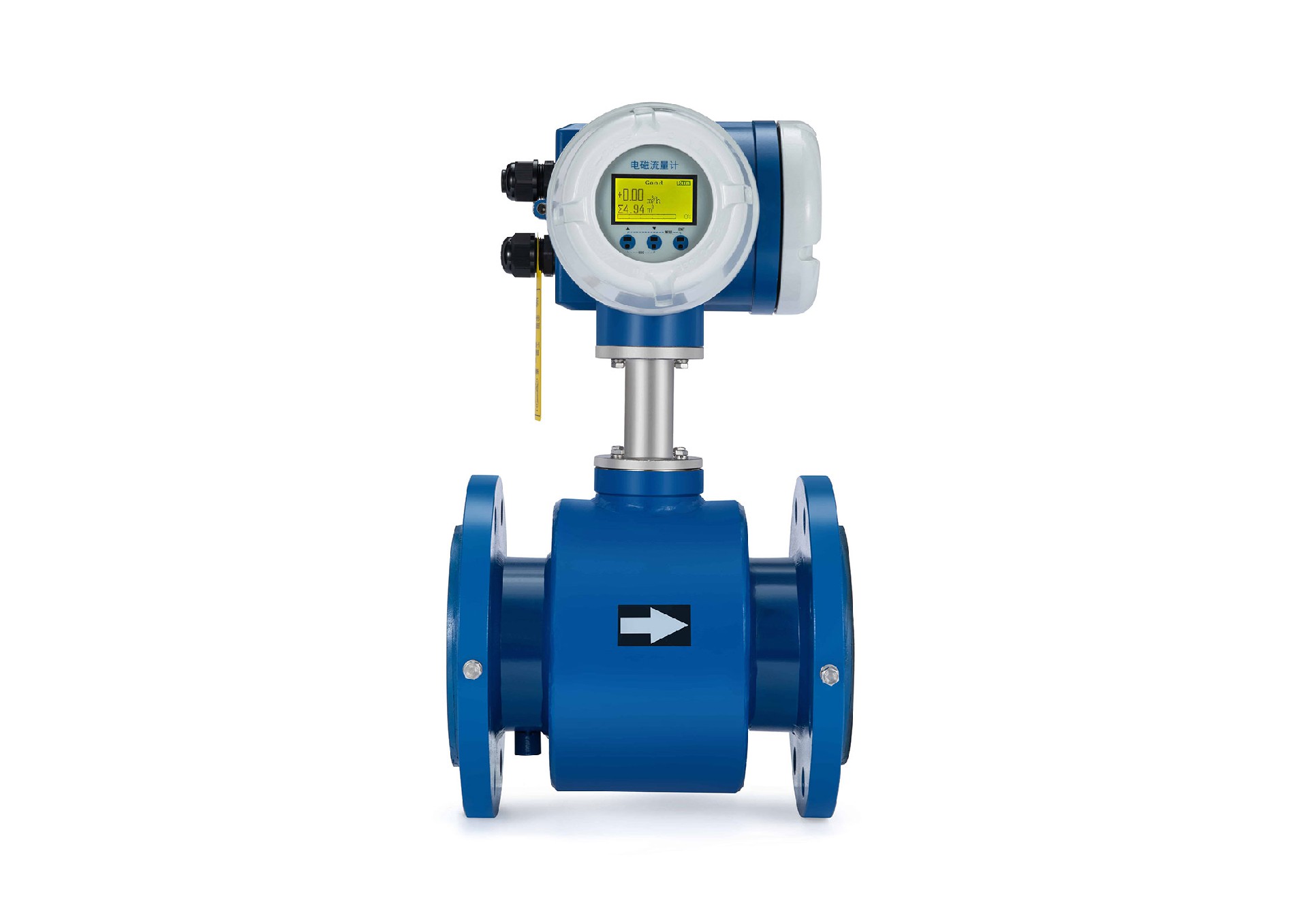

I. Product Introduction:

       Filling type electromagnetic flowmeter: 3.125HZ~160Hz frequency optional, adaptable to various harsh working conditions; Damping adjustable between 0.1-200S, smaller damping time value means faster response, suitable for filling applications; Same accuracy, self-diagnosis and field adaptability as flange type; HART, ATEX, SIL, CE and other international certifications.

II. Product Features:

       Excitation frequency adjustable from 1.5625HZ-25HZ, adaptable to different working conditions, accuracy up to 0.2 class.

       Damping adjustable between 0.1-200S, smaller damping time value means faster response, larger value means more stable flow, suitable for filling applications.

       Parameter wizard function for quick and accurate product setting.

       Infrared buttons, no need to open the cover for menu setting.

       Wiring self-check diagnosis function to prevent wiring errors.

       Free switching between Chinese and English menus.

       Rich data recording functions, including power on/off records, parameter modification records, historical data records, etc.

       Rich self-diagnosis functions, such as empty pipe diagnosis, gas content diagnosis, corrosion diagnosis, lining deformation diagnosis, etc. With noise suppression and anti-interference functions.

       Flexible product iteration and backward compatibility.

III. Industry Applications:

       Water supply and sewage treatment

       Chemical and pharmaceutical industries

       Food and beverage industries

       Mining, concrete and cement industries

       Pulp and paper industries

       Metallurgical industry

IV. Product Parameters:

• Pipe Diameter	DN15~DN200
  Accuracy Class	0.2 class, 0.3 class, 0.5 class
  Measurable Flow Velocity Range	0.005m/s~12 m/s
  Power Supply Type	85V~265V.AC; 20.4V~28.8V.DC
  Input/Output	(4~20)mA.DC, frequency output, relay output
  Communication Method	RS485, HART
  Explosion-proof Parameters	Exd eia llCT4~T6 Gb, Exdb ll CT6 Gb, Extb lllC T80°C Db
  Lining Material	DN15-DN200: PFA/F46; DN32-DN200: F4;
  Protection Class	Integrated type: IP67; Split type: Sensor IP68, Converter IP67
  Structure Type	Clamp type
  Electrode Material	316L, HC, Hb, Ti, Ta, Pt, Tungsten carbide, etc.
  Flange, Panel Shell Material	Stainless steel
  Excitation Method	Excitation frequency: 1.5625Hz, 3.125Hz, 6.25 Hz, 12.5 Hz, 25Hz Excitation current: 125mA, 200mA
  Minimum Measurable Conductivity	5us/cm
  Display	Dot matrix LCD: 128x64, yellow-green backlight
  Display Information	Instantaneous flow, forward cumulative volume, flow velocity, reverse cumulative volume, output frequency, output current, flow percentage, converter temperature, time and date, flow curve, etc.
  Display Language	Supports both Chinese and English display modes
  Unit Setting	Supports cumulative units m3, L, t, kg, gal, lb, ft3, time units s, min, h, day, flow units can be any combination of the above units
  Buttons	Infrared buttons (no need to open the cover)
  Housing Material	Aluminum alloy
  Housing Coating	Anti-corrosion polyurethane, blue/white
  Electrical Interface	M20x1.5, G1/2, NPT1/2 internal thread, φ10 cable hole, other connection forms can be customized
  Ambient Temperature	-40°C~+60°C
