I. Product Introduction:

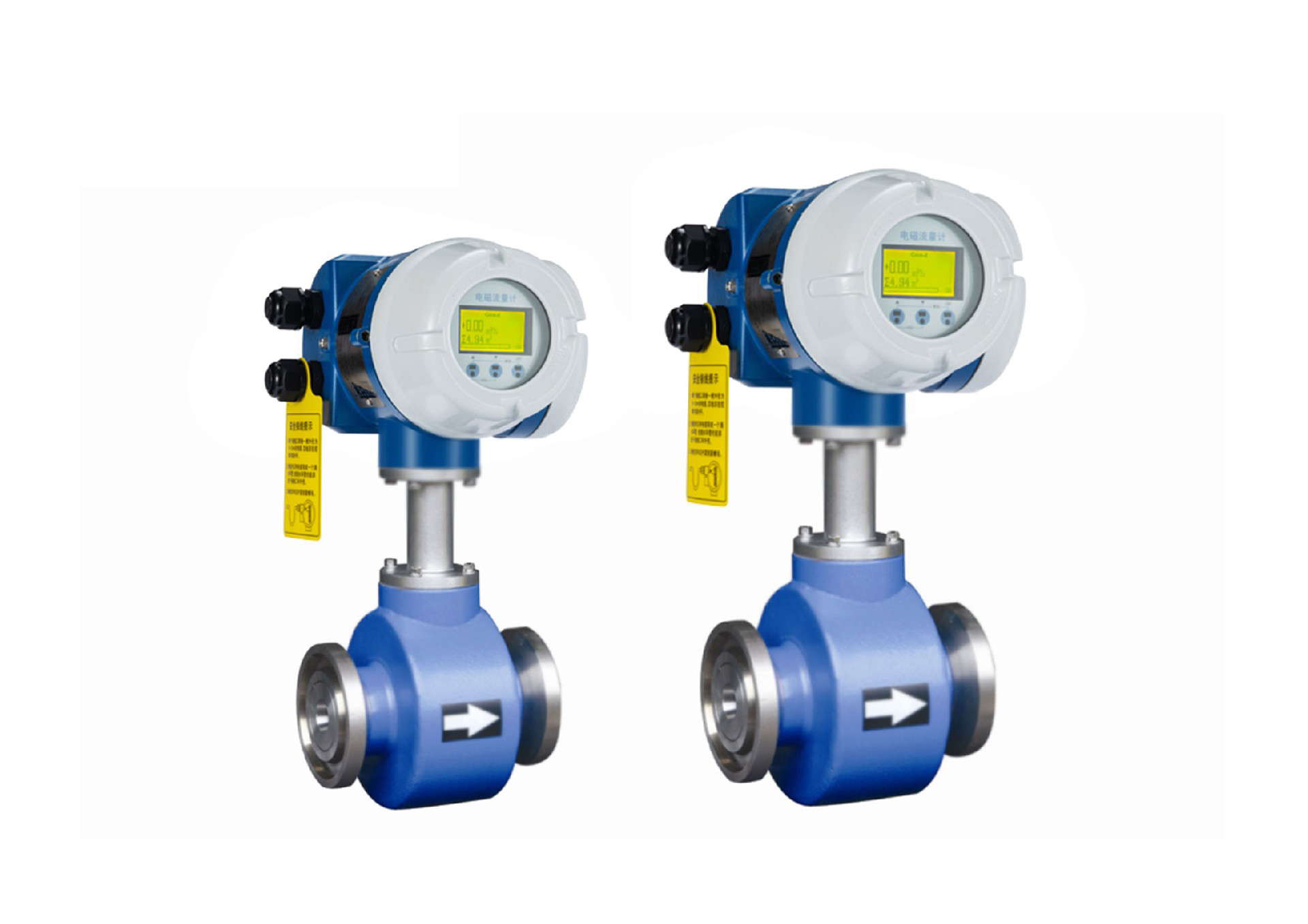

       High-pressure electromagnetic flowmeter: Maximum pressure resistance up to 42MPa, raised-face and RJ metal ring connection faces available for different pressure等级 configurations, same accuracy, self-diagnosis and field adaptability as flange type, certified with ART, ATEX, SIL, CE and other international certifications.

II. Product Features:

       Specially designed flowmeter for oilfield site conditions.

       Raised-face and RJ metal ring connection faces available for different pressure rating configurations, high pressure resistant and wear resistant.

       Parameter wizard function for quick and accurate product setting.

       Infrared buttons, no need to open the cover for menu setting.

       Wiring self-check diagnosis function to prevent wiring errors.

       Free switching between Chinese and English menus.

       Rich data recording functions, including power on/off records, parameter modification records, historical data records, etc.

       Noise suppression and anti-interference functions.

       Rich self-diagnosis functions, such as empty pipe diagnosis, gas content diagnosis, corrosion diagnosis, lining deformation diagnosis, etc.

       Sensor magnetic field simulation, excitation frequency adjustable from 1.5625HZ-25HZ, adaptable to different working conditions, accuracy up to 0.2 class.

       Damping adjustable between 0.1-200S, smaller damping time value means faster response, larger value means more stable flow, suitable for filling applications.

       Flexible product iteration and backward compatibility.

III. Industry Applications:

       Water supply and sewage treatment

       Chemical and pharmaceutical industries

       Food and beverage industries

       Mining, concrete and cement industries

       Pulp and paper industries

       Metallurgical industry

IV. Product Parameters:

• Pipe Diameter	DN15~DN200
  Accuracy Class	0.2级，0.3级，0.5级
  Measurable Flow Velocity Range	0.005m/s~12 m/s
  Power Supply Type	85V~265V.AC; 20.4V~28.8V.DC
  Input/Output	(4~20)mA.DC, Frequency Output, Relay Output
  Communication Method	RS485、HART
  Explosion-proof Parameters	Exd eia llCT4~T6 Gb, Exdb ll CT6 Gb, Extb lllC T80°C Db
  Lining Material	DN15-DN200:PFA/F46;DN32-DN200:F4;
  Protection Class	Integrated type: IP67; Split type: Sensor IP68, Transmitter IP67
  Structure Type	Clamp Type
  Electrode Material	316L, HC, Hb, Ti, Ta, Pt, Tungsten Carbide, etc.
  Flange and Cladding Housing Material	Stainless Steel
  Excitation Method	Excitation Frequency: 1.5625Hz, 3.125Hz, 6.25 Hz, 12.5 Hz, 25Hz; Excitation Current: 125mA, 200mA
  Minimum Measurable Conductivity	5us/cm
  Display	Dot-matrix LCD: 128x64, yellow-green backlight
  Display Information	Instantaneous flow, forward cumulative flow, flow velocity, reverse cumulative flow, output frequency, output current, flow percentage, transmitter temperature, time and date, flow curve, etc.
  Display Language	Supports Chinese and English display modes
  Unit Setting	Supports cumulative units: m3, L, t, kg, gal, lb, ft3; Time units: s, min, h, day; Flow units can be any combination of the above units
  Buttons	Infrared buttons (no need to open the cover)
  Housing Material	Aluminum Alloy
  Housing Coating	Anti-corrosion polyurethane, blue/white
  Electrical Interface	M20x1.5, G1/2, NPT1/2 internal thread, φ10 cable hole, other connection forms customizable
  Ambient Temperature	-40°C~+60°C
