1. Product Introduction:

       YYCG ultrasonic flowmeter is a time-difference flowmeter that measures fluid flow based on the propagation law of sound waves in flowing liquids. It has advantages such as high precision, high reliability, high performance, low power consumption, and low price, and has a wide range of uses. While meeting on-site monitoring and display, it can output standard DC current signals (4～20mA) for recording, regulation, and control. It is widely used in tap water, circulating water, industrial water, various fuel oils, various acid-base solutions, various chemical solvents, etc.

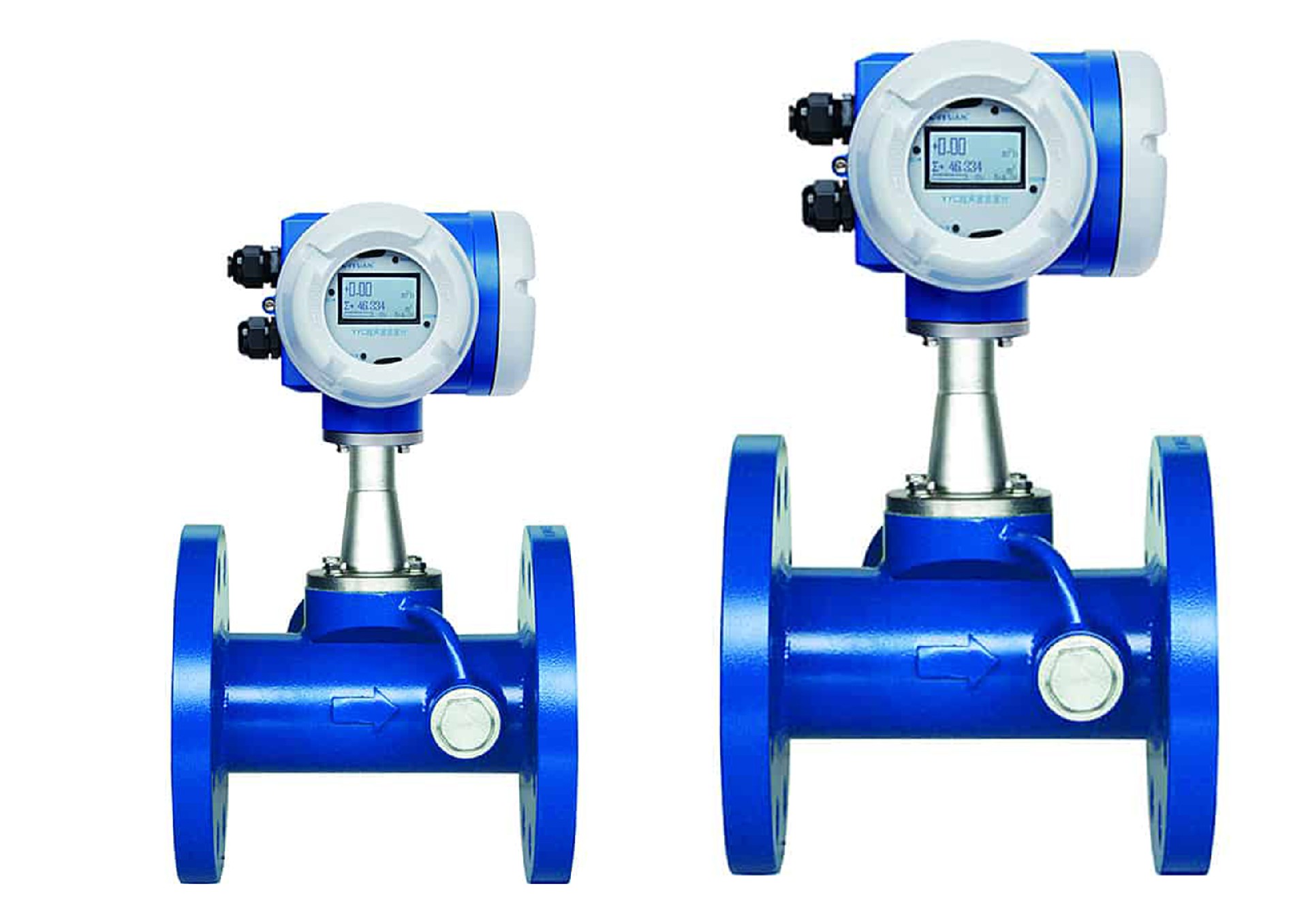

       YYCG single-channel ultrasonic flowmeter: Single-channel transducer layout, meets normal flow measurement requirements, achieves high cost performance; All-metal integrated sensor, rust and corrosion resistant; Can choose integrated or separate converter type.

2. Product Features:

       High resolution, reaching the best range ratio;

       High-frequency ultrasonic signals, realizing high dynamic flow measurement, high real-time performance, fast response speed;

       All-metal integrated sensor, rust and corrosion resistant;

       Data will not be lost after power failure;

       Bidirectional flow measurement function;

       Equipped with current, frequency, pulse and relay output functions;

       With multiple output functions;

       Advanced power supply technology, the same power supply interface can be connected to 24V.DC or 220V.AC.

3. Industry Applications:

       Water supply and sewage treatment

       Chemical and pharmaceutical industries

       Food and beverage industry

       Mining, concrete and cement industries

       Pulp and paper industry

       Metallurgical industry

4. Product Parameters:

• Caliber	DN20~DN400
  Accuracy Class	Class 1.0
  Number of Channels	Single-channel
  Measurement Range	0.5m/s~10m/s
  Medium Temperature	(-20~150)°C
  Sensor Material	Stainless Steel
  Converter Material	Aluminum Alloy
  Installation Method	Flange Type
  Protection Class	IP67
  Explosion-proof Grade	Ex d IIC T6 Gb;Extb IIIC T80°C Db
  Working Power Supply	24V or 220V
  Power	≤4W
  Output Signal	(4~20)mA.DC, Frequency Output
  Communication Output	RS485 (ModBus Protocol)
  LCD Display	Full-dot matrix LCD screen (128*64 pixels)
  Display Content	Instantaneous flow, instantaneous flow percentage, forward cumulative amount, instrument tag number, operating status, reverse cumulative amount, pipeline parameters, current output value, frequency output value, flow rate, time and date, etc.
