1. Product Introduction:

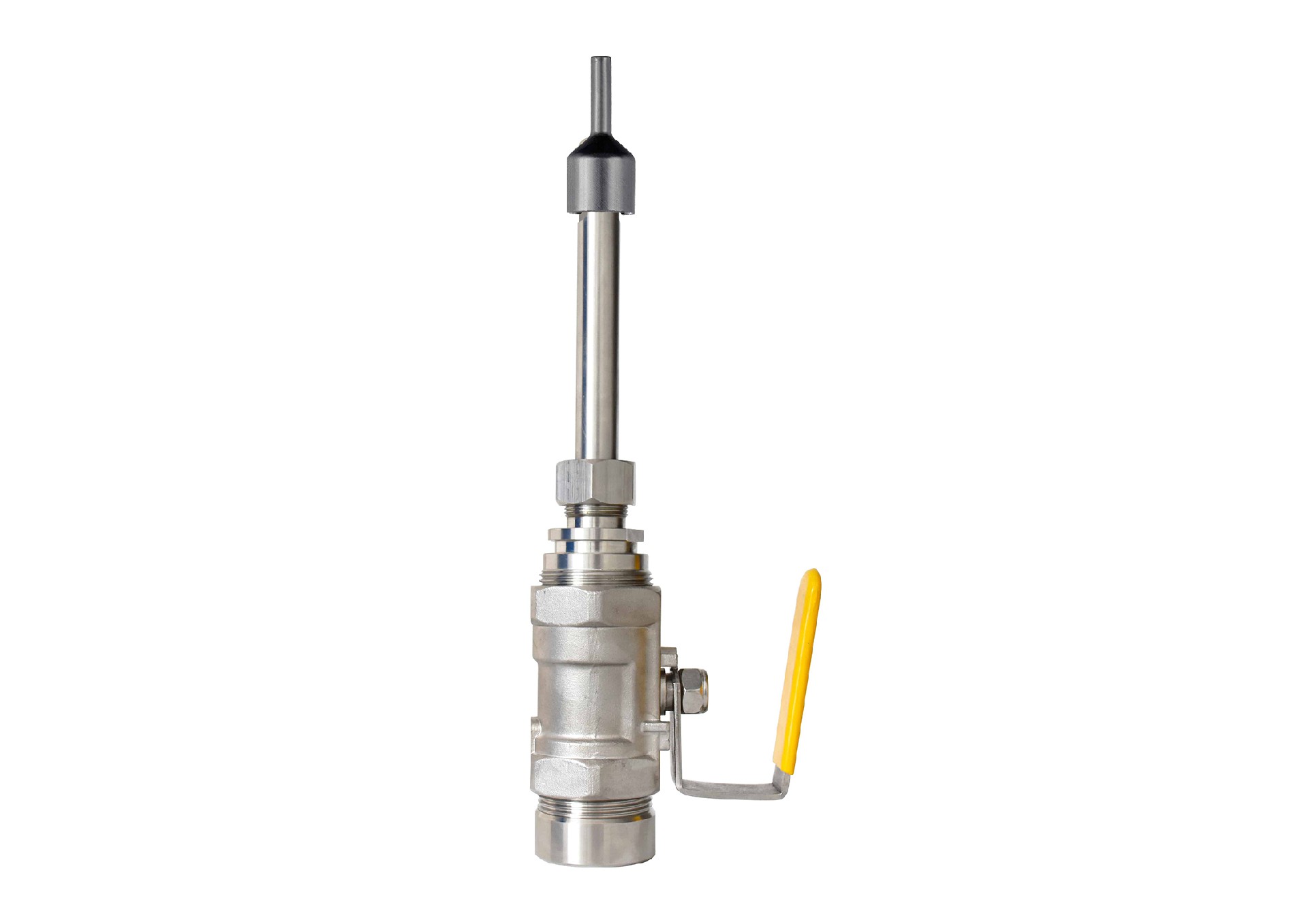

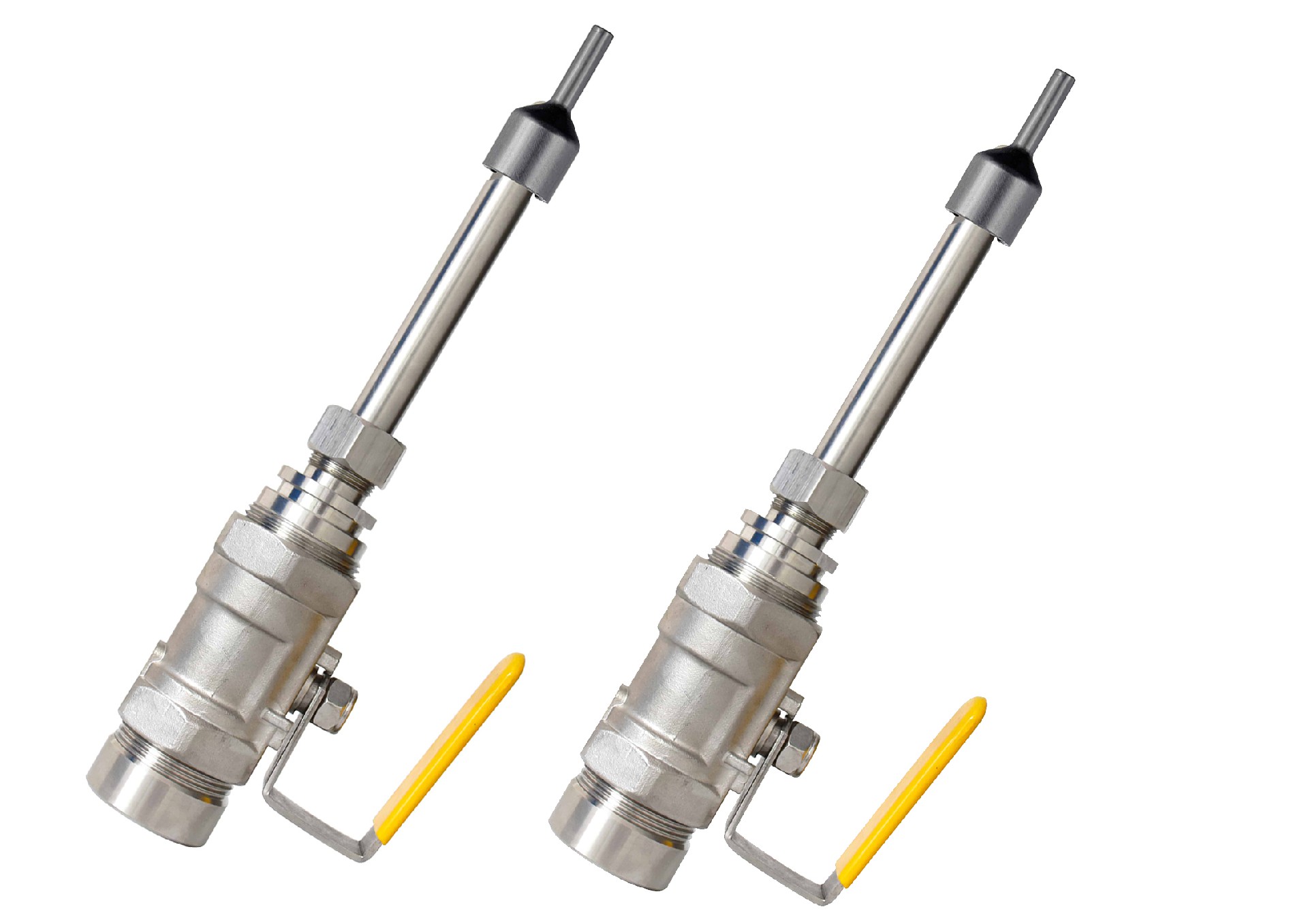

       Insertion ultrasonic flowmeter is a time-difference flowmeter that measures fluid flow based on the propagation law of sound waves in flowing liquids. It has advantages such as simple and convenient installation, and has a wide range of uses. While meeting on-site monitoring and display, it can output standard DC current signals (4～20mA) for recording, regulation, and control.

       YYCC insertion ultrasonic flowmeter: Online drilling insertion installation method, no need to stop water for installation; Can be used for conductive, non-conductive and special medium measurement; All-metal integrated sensor, rust and corrosion resistant.

2. Product Features:

       Insertion installation method, no pressure loss;

       Can be used for conductive, non-conductive and special medium measurement;

       Strong anti-electromagnetic interference capability;

       All-metal integrated sensor, rust and corrosion resistant;

       Current, frequency, pulse and relay output functions, RS485, HART communication interfaces;

       Data stored in EEPROM, can realize automatic storage, measurement and calculation data storage protection is safe and reliable;

       Lightning protection output interface

3. Industry Applications:

       Widely used in tap water, circulating water, industrial water, various fuel oils, various acid-base solutions, various chemical solvents, etc.

4. Product Parameters:

• Caliber	DN80~DN2000
  Accuracy Class	Class 1.0
  Medium Temperature	(-20~120)℃;
  Measurement Range	0.5m/s~10m/s
  Sensor Material	Stainless Steel
  Converter Material	Aluminum Alloy
  Working Pressure	1.6MPa
  Number of Channels	Single-channel, dual-channel, three-channel, four-channel
  Protection Class	Sensor IP68, Converter IP65
  Working Power Supply	24V and 220V universal
  Power	≤4w
  Output Signal	(4~20)mA.DC, Frequency Output
  Communication Output	RS485 (ModBus Protocol)
  LCD Display	Full-dot matrix LCD screen (128*64 pixels)
  Display Content	Instantaneous flow, instantaneous flow percentage, forward cumulative amount, instrument tag number, operating status, reverse cumulative amount, pipeline parameters, current output value, frequency output value, flow rate, time and date, etc.
