1. Product Introduction:

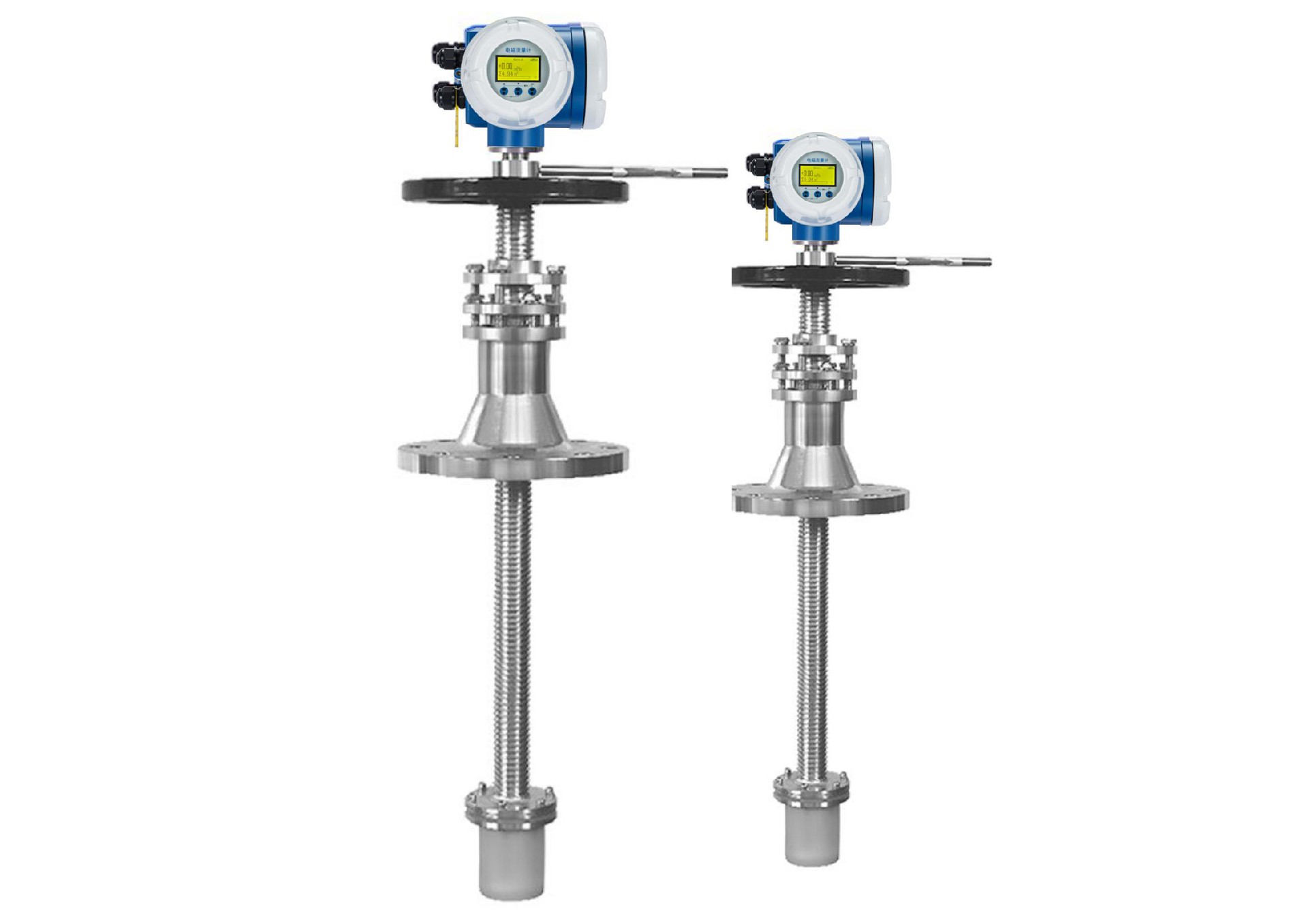

       YYDC insertion electromagnetic flowmeter can be installed online with high installation flexibility, providing high cost performance in fluid metering of large-diameter pipelines, and achieving accuracy class 1.5 for long-term stable measurement. The electromagnetic flowmeter is a high-precision instrument based on Faraday's electromagnetic induction principle for measuring conductive liquids, widely used in metallurgy, petrochemical, pharmaceutical, food, paper, thermal power, and water industries.

2. Product Features:

       Stainless steel threaded insertion rod, high pressure and corrosion resistant;

       The measuring head is made of F46 wrapped steel pipe with one-time injection molding, providing higher sealing and durability;

       Optional supporting installation ball valve for online disassembly and maintenance;

       Parameter wizard function for quick and accurate product setup;

       Wiring self-check diagnostic function to prevent wiring errors;

       Free switching between Chinese and English menus;

       Rich data recording functions, including power on/off records, parameter modification records, historical data records, etc.;

       Rich self-diagnostic functions, such as empty pipe, broken excitation, etc.

       Integrated installation structure.

3. Industry Applications:

       Water supply and sewage treatment

       Chemical and pharmaceutical industries

       Food and beverage industry

       Mining, concrete and cement industry

       Pulp and paper industry

       Metallurgical industry

4. Product Parameters:

• Caliber	DN200~DN3000
  Accuracy Class	Class 1.5, Class 2.5
  Measurable Flow Velocity Range	0.1m/s~12 m/s
  Power Supply Type	85V~265V.AC; 20.4V~28.8V.DC
  Input/Output	(4~20)mA.DC, frequency output
  Communication Method	RS485, HART
  Explosion-proof Parameters	Exd e ia llC T4~T6 Gb, Exdb ll CT6 Gb, Extb lllC T80'C Db
  Lining Material	PFA/F46
  Protection Class	Integrated: IP67
  Electrode Material	316L, HC, etc.
  Screw Material	304, 316L
  Welding Base Material	Carbon Steel, Stainless Steel
  Maximum Working Pressure	1.6MPa
  Excitation Method	Excitation Frequency: 6.25 Hz Excitation Current: 125mA
  Minimum Measurable Conductivity	20μs/cm
  Display	Dot matrix LCD: 128x64, yellow-green backlight
  Display Information	Instantaneous flow, forward cumulative flow, flow velocity, reverse cumulative flow, output frequency, output current, flow percentage, converter temperature, time and date, flow curve, etc.
  Display Language	Supports Chinese and English display modes
  Unit Settings	Supports cumulative units m³, L, t, kg, gal, lb, ft³, time units s, min, h, day, and flow units can be any combination of the above units
  Buttons	Infrared buttons (no need to open the cover)
  Housing Material	Aluminum Alloy
  Housing Coating	Anti-corrosion Polyurethane, Blue/White
  Electrical Interface	M20x1.5, G1/2, NPT1/2 internal thread, φ10 cable hole, other connection forms customized
  Ambient Temperature	-40℃~60℃
