1. Product Introduction:

       Vortex flowmeter is an intelligent instrument for measuring gas, liquid and steam flow based on the Karman vortex principle. When fluid passes through, regular vortices are alternately generated on both sides of the vortex generator set in the instrument, and the frequency of the vortices is proportional to the fluid flow. Widely used in metallurgy, petrochemical, pharmaceutical, food, paper, thermal power and other industries.

       YYW-D1 vortex flowmeter adopts the currently reliable piezoelectric cantilever beam sensor structure, and uses four piezoelectric crystals, 1/Fr² signal bandpass filter, sampling threshold limit and other algorithms to further improve the adaptability to the field environment, which can be applied to most vibration conditions. In addition, functions such as HART communication, LCD backlight display, and temperature and pressure compensation have been added, which can measure all single-phase fluids.

       YYW-D1 vortex flowmeter has no moving parts and meets the flow measurement of gas, liquid and steam; 1/Fr² signal bandpass filter, automatic gain, sampling threshold free configuration, to meet the stable measurement of different working conditions; HART communication, 4-20mA two-wire output with backlight display; Integrated temperature and pressure compensation, to achieve Nm³/h, t/h unit flow display and output.

2. Product Features:

       Cantilever beam vortex sensor structure, built-in four piezoelectric crystals, to achieve vibration noise suppression;

       1/Fr² signal bandpass filter, to achieve high-frequency interference suppression;

       Automatic gain, sampling threshold free configuration, to meet the stable measurement of different working conditions;

       Standard HART communication, parameter configuration can be achieved through 475 handheld communicator;

       LCD backlight display, 4-20mA two-wire output;

       Minimum damping 0.5S, setting below 1S can be applied to canning metering;

       PT100 is built into the vortex sensor to achieve integrated temperature and flow acquisition;

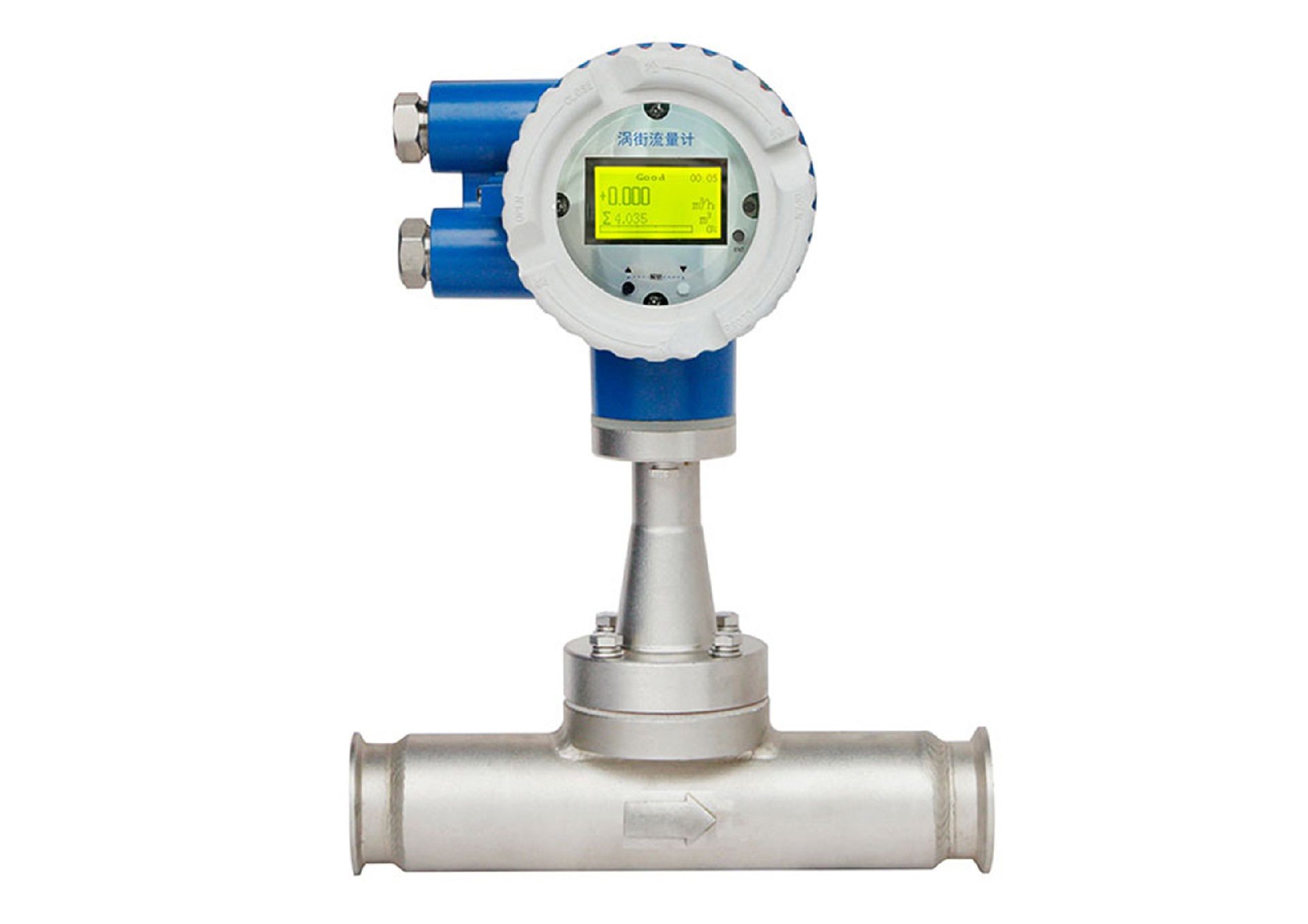

       Multiple installation structures: flange type, clamp type, sanitary clamp type;

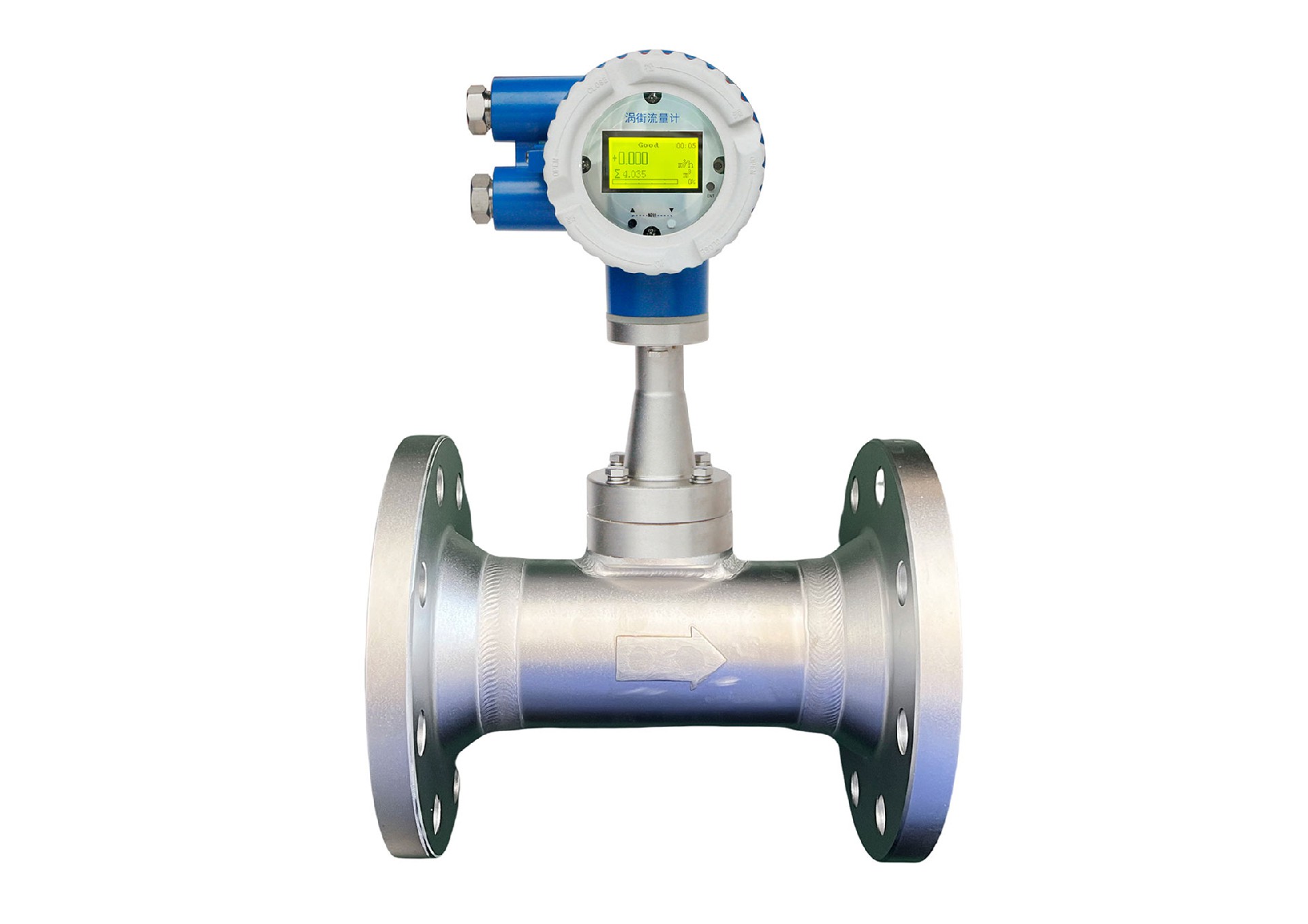

       Optional with port nozzle self-reducing diameter to achieve small flow measurement;

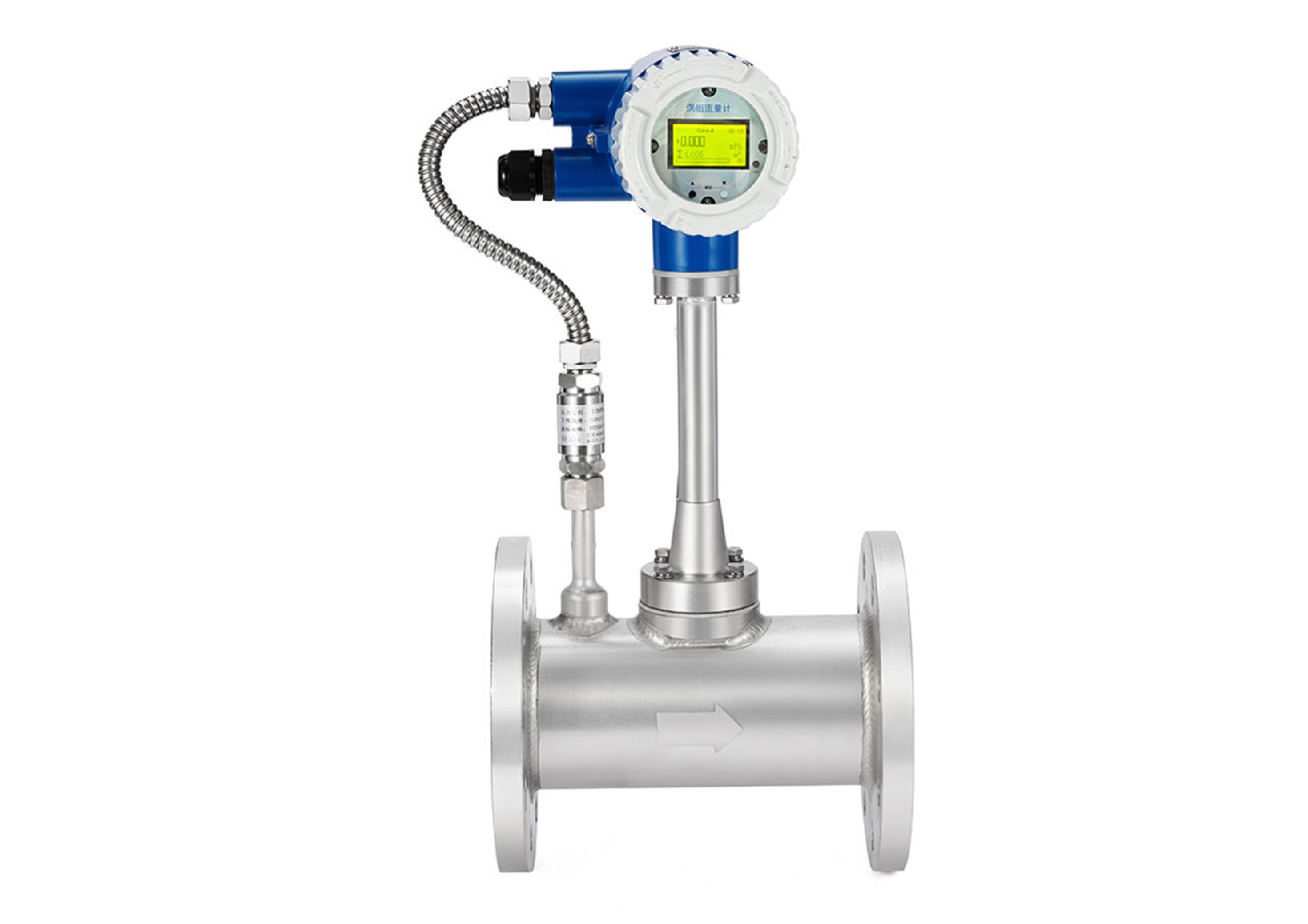

       Integrated temperature and pressure compensation, to achieve Nm³/h, t/h unit flow display and output;

3. Industry Applications:

       Water supply and sewage treatment

       Chemical and pharmaceutical industries

       Food and beverage industry

       Mining, concrete and cement industry

       Pulp and paper industry

       Metallurgical industry

4. Product Parameters:

• Caliber	DN20～DN350
  Accuracy Class	Class 1.0, Class 1.5
  Measurable Flow Velocity Range	Gas: 4m/S~80 m/S; Liquid: 0.3m/S~8m/S
  Power Supply Type	24V.DC
  Input/Output	4-20mA, original pulse output
  Communication Method	RS485, HART
  Explosion-proof Parameters	Exia II CT6 Ga, Exdb IIC T6 Gb, Extb IIIC T80 ℃ Db
  Lining Material	DN8-DN600: PFA/F46; DN32-DN1200: F4; DN50-DN3000: Neoprene, Polyurethane
  Protection Class	IP65, IP67
  Structural Type	Flange type, clamp type, sanitary clamp type
  Converter表头Installation Type	Integrated, split type (maximum separation 20 meters)
  Compensation Type	Optional temperature and pressure compensation
  Pipeline Self-reducing Diameter	Can be reduced by one size (e.g. DN80 self-reduced to DN65)
  Body Material	304, 316L
  Probe Material	316L, HC
  Medium Temperature Range	-20℃~350℃
  Display	Dot matrix LCD, yellow-green backlight
  Buttons	Mechanical buttons
  Housing Material	Aluminum alloy
  Housing Coating	Anti-corrosion polyurethane, blue/white
  Electrical Interface	M20×1.5, G1/2, NPT1/2 internal thread, φ10 cable hole, other connection forms customized
  Ambient Temperature	-40°C~+60°C
