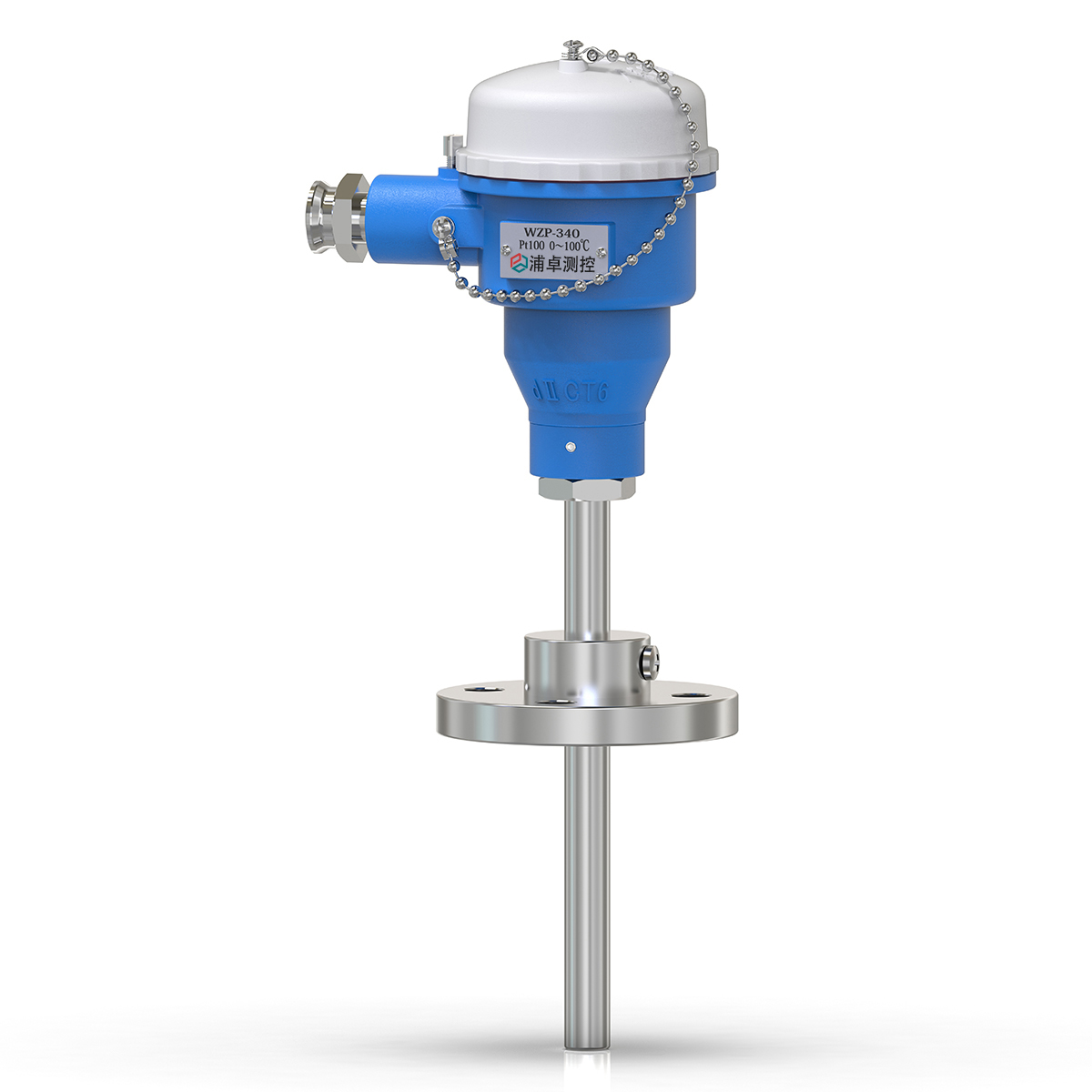

Explosion-Proof Assembled Thermal Resistance Temperature Transmitter
Temperature Meters工业用热电阻作为温度测量传感器,通常显示仪表、记录仪和电子调节器等配套使用，它可以直接测量或控制各种生产过程中-200℃-600℃范围内的液体,蒸汽和气体介质以及固体表面的温度.根据国家规定，我公司生产的符合IEC国际标准分度号的Pt100铂热电阻和符合专业标准分度号的Cu50铜热电阻两大类装配式、统一设计型热电阻。主要技
021-37827699
Warm Reminder: To view specific product attribute differences, please click to consult immediately.
Product Details
As a temperature measurement sensor, the industrial thermal resistance is usually used in conjunction with display instruments, recorders and electronic regulators. It can directly measure or control the temperature of liquids, steam, gaseous media and solid surfaces within the range of -200℃ to 600℃ in various production processes.
In accordance with national regulations, our company produces two categories of assembled and unified design thermal resistances: Pt100 platinum thermal resistances conforming to the thermometer index of IEC international standards and Cu50 copper thermal resistances conforming to the thermometer index of professional standards.

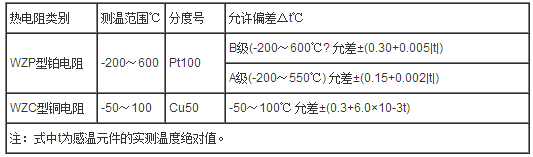

Main Technical Specifications:Temperature Measurement Range and Allowable Error
Ratio of resistance value at 100℃ (R100) to resistance value at 0℃ (R0) of the thermal resistance temperature-sensing element: (R100/R0)
Thermometer Index Pt100: Class A R0=100±0.06Ω
Class B R0=100±0.12Ω
R0/R100=1.3850
Thermometer Index Cu50: R0=50±0.05Ω
R0/R100=1.428±0.02
