I. Product Introduction:

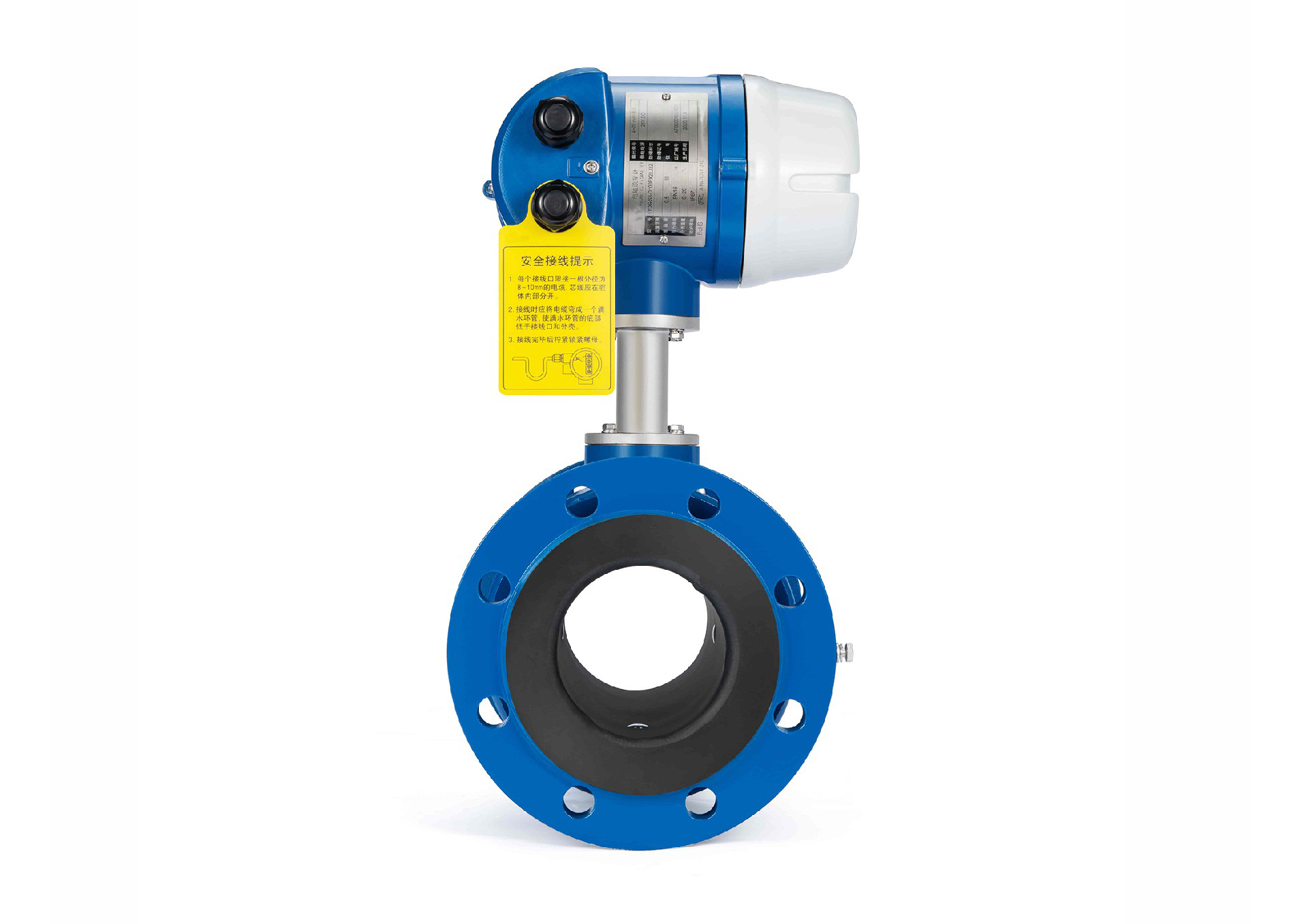

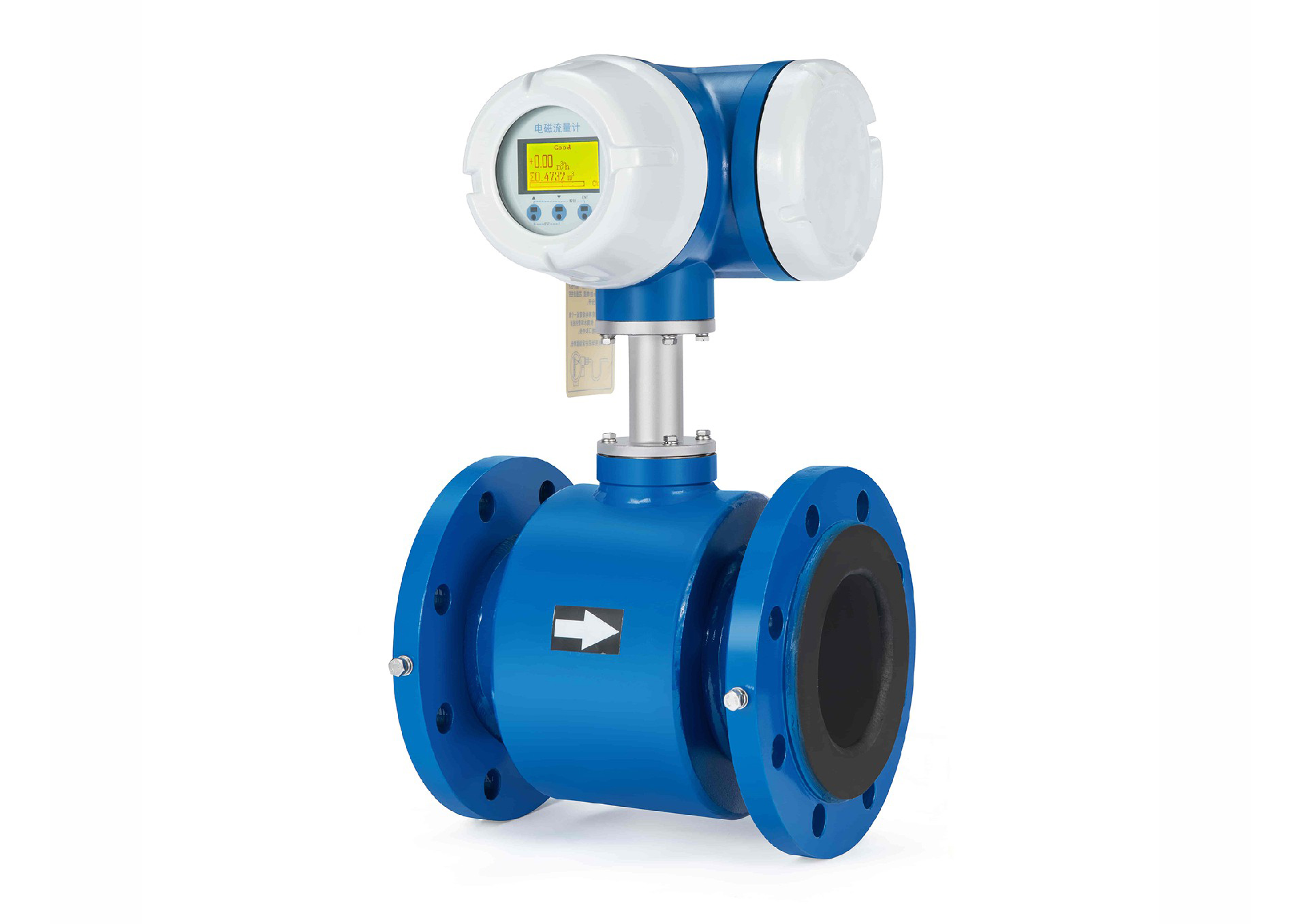

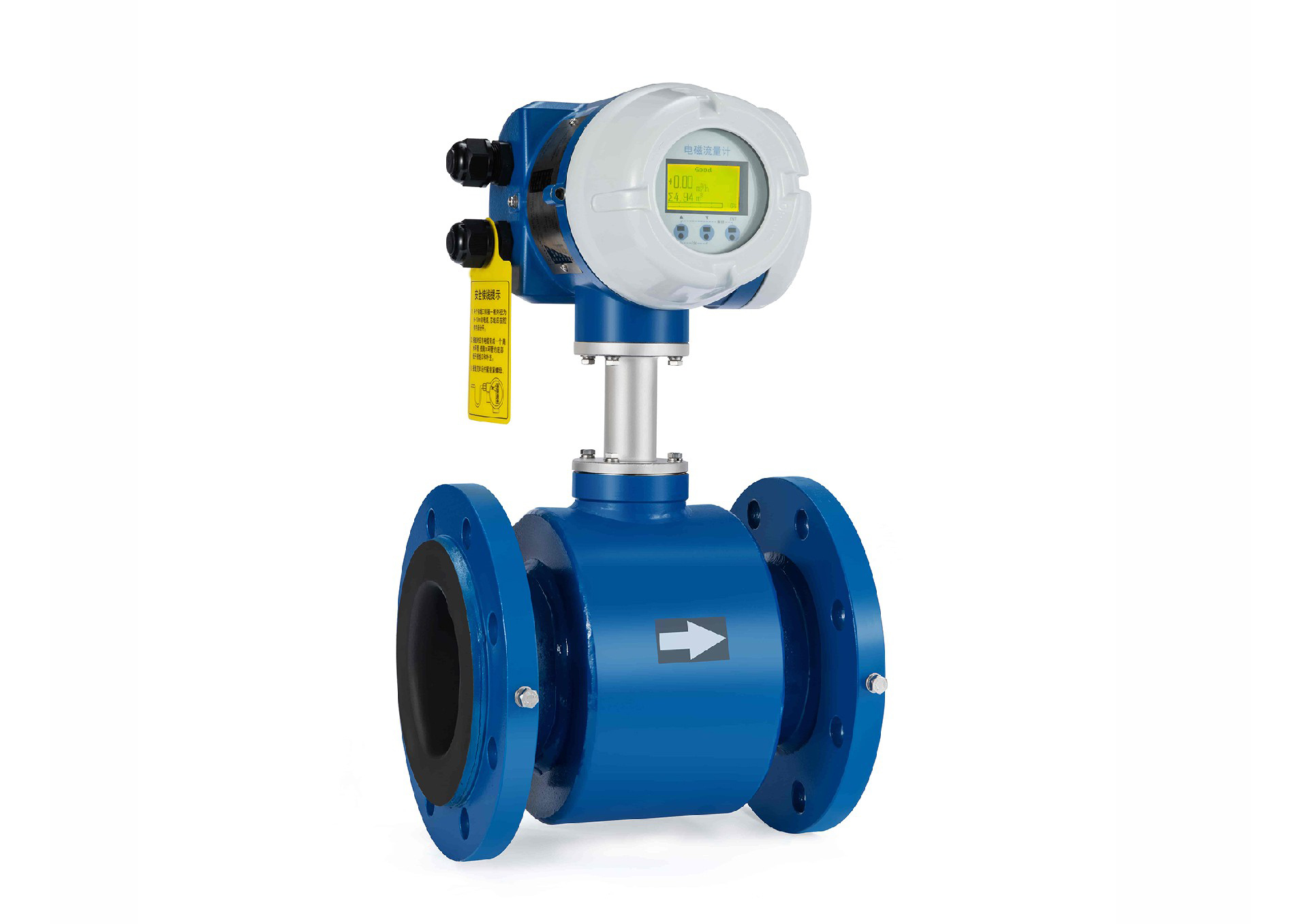

       YYDG water supply dedicated electromagnetic flowmeter has strong anti-interference ability, can quickly capture flow changes, and improve measurement accuracy. The lining material meets drinking water standard requirements; rich self-diagnosis functions, noise suppression, and anti-interference functions ensure more stable measurement; high accuracy class up to 0.2; high signal resolution that can achieve the best range ratio, suitable for small flow measurement at night.

II. Product Features:

       Parameter wizard function for quick and accurate product setup;

       Infrared buttons, no need to open the cover for menu settings;

       Wiring self-check diagnosis function to prevent wiring errors;

       Free switching between Chinese and English menus;

       Rich data recording functions, including power on/off records, parameter modification records, historical data records, etc;

       Noise suppression and anti-interference functions;

       Rich self-diagnosis functions, such as empty pipe, excitation failure, etc;

       Sensor magnetic field simulation, excitation frequency adjustable from 1.5625HZ-25HZ, adaptable to different working conditions, accuracy up to 0.2 class;

       Damping adjustable between 0.1-200S, smaller damping time means faster response, larger value means more stable flow, suitable for filling applications;

       Flexible product iteration and backward compatibility.

III. Industry Applications:

       Suitable for water metering in residential areas, large water users, reservoirs or farmland irrigation, with a wide range of applications

IV. Product Parameters:

• Pipe Diameter	DN40~DN300
  Accuracy Class	0.2 class, 0.3 class, 0.5 class
  Measurable Flow Velocity Range	0.005m/s~12m/s
  Power Supply Type	85V~265VAC;20.4V~28.8V.DC
  Input/Output	(4~20)mA.DC, frequency output
  Communication Method	RS485, HART
  Lining Material	Drinking water rubber
  Protection Class	Integrated type: IP67; Split type: Sensor IP68, Transmitter IP67
  Structure Type	Flanged type, sanitary clamp type, wafer type
  Electrode Material	316L, HC, etc.
  Flange and Cladding Housing	Carbon steel, stainless steel
  Excitation Method	Excitation Frequency: 1.5625Hz, 3.125Hz, 6.25Hz, 12.5Hz, 25Hz; Excitation Current: 125mA, 200mA
  Minimum Measurable Conductivity	5us/cm
  Display	Dot matrix LCD: 128x64, yellow-green backlight
  Display Information	Instantaneous flow, forward cumulative flow, flow velocity, reverse cumulative flow, output frequency, output current, flow percentage, transmitter temperature, time and date, flow curve, etc
  Display Language	Supports both Chinese and English display modes
  Unit Setting	Supports cumulative units: m³, L, t, kg, gal, lb, ft³; time units: s, min, h, day; flow units can be any combination of the above units
  Buttons	Infrared buttons (no need to open the cover)
  Housing Material	Aluminum alloy
  Housing Coating	Anti-corrosion polyurethane, blue/white
  Electrical Interface	M20X1.5, G1/2, NPT1/2 internal thread, φ10 cable hole, other connection forms can be customized
  Ambient Temperature	-40℃ to +60℃
